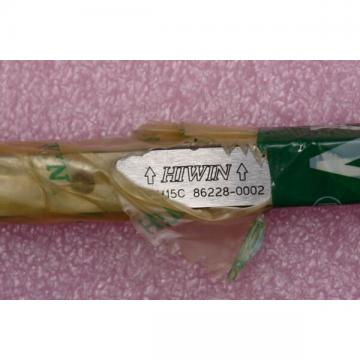

Hiwin H15C Block & 86228-0002

Hiwin H15C Block & 86228-0002 SPECIFICATIONS

Hiwin H15C Block & 86228-0002 N/A Minimum Buy Quantity Warehouse offers car parts and car accessories. We sell discount HIWIN Flange Block Category online as well as cheap machinery parts. 0.0 Inventory
Category:Flange Block
Inventory:0.0
Minimum Buy Quantity:N/A
Weight:4.54
Product Group:M06288
Number of Mounting Holes:4
Mounting Method:Eccentric Collar
Housing Style:4 Bolt Square Flange Block

Download Hiwin H15C Block & 86228-0002 Spec Sheet

Leader Industrial Manufacture

Leader Industrial ManufactureChina

Leader Industrial Manufacture2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!

Interested In: Price Inspection Certificate Product Specifications Company Profile

Hiwin H15C Block & 86228-0002 Dimensions

Rolling Element:Spherical Roller Bearing
Housing Material:Cast Steel
Expansion / Non-expansion:Non-expansion
Mounting Bolts:1/2 Inch
Relubricatable:Yes
Insert Part Number:22208
Seals:Triple Lip Nitrile Rubber
Housing Configuration:1 Piece Solid
Pilot Configuration:No Pilot
Inch - Metric:Inch
Long Description:4 Bolt Square Flange Block; 1-7/16" Bore; 5.2" Bolt Circle; 3.72" Bolt Spacing; 1 Piece Solid; Eccentric Collar Mount; Cast Steel; Spherical Roller Bearing; 2-3/4" Length Thru Bore
Other Features:Double Row
UNSPSC:31171501
Harmonized Tariff Code:8483.20.40.80
Noun:Bearing
Keyword String:Flanged
Manufacturer Item Number:QMFX08J107SM
Weight / LBS:10
D:2.75 Inch | 69.85 Millimeter
Cartridge Pilot Diameter:0 Inch | 0 Millimeter
d:1.438 Inch | 36.525 Millimeter
Bolt Spacing:3.72 Inch | 94.488 Millimeter
Cartridge Pilot Depth:0 Inch | 0 Millimeter
Nominal Bolt Circle Diameter Round:5.2 Inch | 132 Millimeter

Hiwin H15C Block & 86228-0002 pdf
