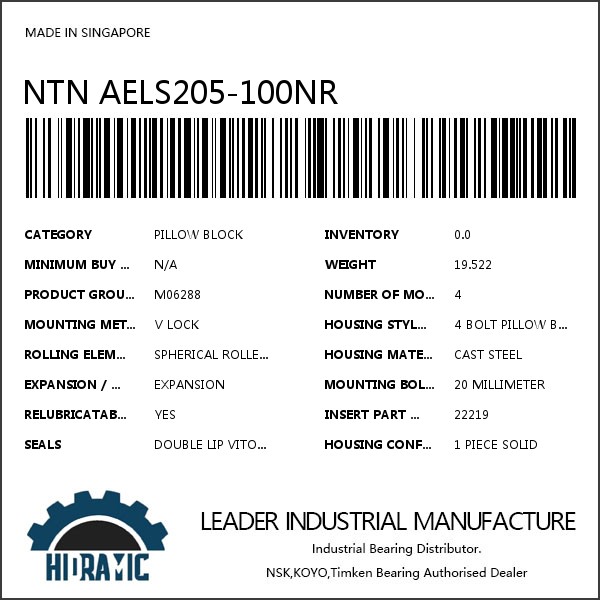

NTN AELS205-100NR

NTN AELS205-100NR SPECIFICATIONS

NTN AELS205-100NR Engineering Calculator 0.0 Inventory , Mounted Units Manufacturing Pillow Block Category Service . Get Your Free.
Category:Pillow Block
Inventory:0.0
Minimum Buy Quantity:N/A
Weight:19.522
Product Group:M06288
Number of Mounting Holes:4
Mounting Method:V Lock
Housing Style:4 Bolt Pillow Block

Download NTN AELS205-100NR Spec Sheet

Leader Industrial Manufacture

Leader Industrial ManufactureChina

Leader Industrial Manufacture2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!

Interested In: Price Inspection Certificate Product Specifications Company Profile

Information techniques NTN AELS205-100NR

Rolling Element:Spherical Roller Bearing
Housing Material:Cast Steel
Expansion / Non-expansion:Expansion
Mounting Bolts:20 Millimeter
Relubricatable:Yes
Insert Part Number:22219
Seals:Double Lip Viton
Housing Configuration:1 Piece Solid
Inch - Metric:Metric
Other Features:Double Row | Single Nut
Long Description:4 Bolt Pillow Block; 90MM Bore; 101.6MM Base to Center Height; V Lock Mount; Spherical Roller Bearing; 274.6MM Minimum Bolt Spacing; 309.6MM Bolt Spacing Maximum; Relubricatable; Cast Steel; Double Li
UNSPSC:31171511
Harmonized Tariff Code:8483.20.40.80
Noun:Bearing
Keyword String:Pillow Block
Manufacturer Item Number:QVPX19V090SEC
Weight / LBS:49
Bolt Spacing Minimum:10.811 Inch | 274.6Millimeter
Bolt Spacing Maximum:12.189 Inch | 309.6Millimeter
Actual Bolt Center to Center:0 Inch | 0Millimeter
D:3.69 Inch | 93.726 Millimeter
Nominal Bolt Center to Center:11.5 Inch | 292.1 Millimeter
B:4 Inch | 101.6 Millimeter
d:3.543 Inch | 90 Millimeter

NTN AELS205-100NR pdf
