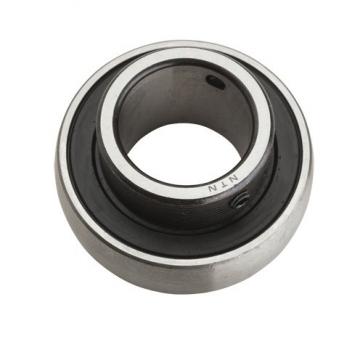

NTN AS206-103

NTN AS206-103 SPECIFICATIONS

What is the best place to buy NTN AS206-103 online? Mounted Units Spherical Roller Bearing Category Manufacturing Service .
Category:Spherical Roller Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Weight:5.21
Product Group:B04311
Internal Clearance:C0-Medium
Mounting Method:Adapter Mount
Rolling Element:Spherical Roller Bearing

Download NTN AS206-103 Spec Sheet

Leader Industrial Manufacture

Leader Industrial ManufactureChina

Leader Industrial Manufacture2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!

Interested In: Price Inspection Certificate Product Specifications Company Profile

Information techniques NTN AS206-103

Bore Profile:Tapered
Cage Material:Bronze
Enclosure:Open
Number of Rows of Rollers:Double Row
Relubricatable:Yes
Withdrawal Sleeve:AHX2315 (Specify bore)
Inch - Metric:Metric
Long Description:75MM Tapered Bore; 160MM Outside Diameter; 55MM Width; C0-Medium Clearance; Adapter Mount; Double Row of Spherical Roller Bearings; Bronze Cage Material; Open Enclosure; Relubricatable; Adapter Part N
Other Features:Order adapter or withdrawal sleeve or nut separately. Others may be available
UNSPSC:31171510
Harmonized Tariff Code:84823080
Noun:Bearing
Keyword String:Spherical
Manufacturer Item Number:22315CAMKE4
Weight / LBS:5.21
d:2.953 Inch | 75 Millimeter
D:6.299 Inch | 160 Millimeter
Adapter Part Number:SNW115 H2315 HA2315 HE2315 (Specify Bore) Inch | H2315 (Specify bore) Millimeter
B:2.165 Inch | 55 Millimeter
bore diameter::75 mm
maximum rpm::3600 RPM
outside diameter::160 mm
operating temperature range::Maximum of +200 °C
overall width::55 mm
cage material::Brass
bore type::Tapered 1:12
bearing material::Steel
outer ring type::Not Split
cage type::Inner Ring Guided
internal clearance::C0
precision rating::RBEC 1 (ISO Class Normal)
closure type::Open
finish/coating::Uncoated
lubrication hole type::Lubrication Groove & Hole
outer ring width::55 mm
dynamic load capacity::485000 N
fillet radius::2.1 mm
static load capacity::505000 N
series::223
