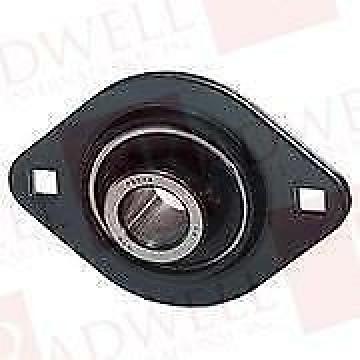

NTN ASPFL203

NTN ASPFL203 SPECIFICATIONS

Request A Quote For Your Special Flange Block Category NTN ASPFL203 Needs Today! Free Mounted Units Quotes. ISO 9001 certified.
Category:Flange Block
Inventory:0.0
Minimum Buy Quantity:N/A
Weight:10.442
Product Group:M06288
Number of Mounting Holes:4
Mounting Method:Tapered Adapter Sleeve
Housing Style:4 Bolt Round Flange Cartridge

Download NTN ASPFL203 Spec Sheet

Leader Industrial Manufacture

Leader Industrial ManufactureChina

Leader Industrial Manufacture2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!

Interested In: Price Inspection Certificate Product Specifications Company Profile

Information techniques NTN ASPFL203

Rolling Element:Spherical Roller Bearing
Housing Material:Cast Steel
Expansion / Non-expansion:Non-expansion
Mounting Bolts:7/16 Inch
Relubricatable:Yes
Insert Part Number:22209
Seals:Triple Lip Urethane
Housing Configuration:1 Piece Solid
Pilot Configuration:With Pilot
Inch - Metric:Inch
Long Description:4 Bolt Round Flange Cartridge; 1-1/2" Bore; 4.4" Bolt Circle; 3.09" Bolt Spacing; 1 Piece Solid; Tapered Adapter Sleeve Mount; Cast Steel; Spherical Roller Bearing; 1.98" Length Th
Other Features:Double Row | Heavy Duty
UNSPSC:31171501
Harmonized Tariff Code:8483.20.40.80
Noun:Bearing
Keyword String:Flanged
Manufacturer Item Number:DVC09K108SO
Weight / LBS:9
Nominal Bolt Circle Diameter Round:4.4 Inch | 111 Millimeter
d:1.5 Inch | 38.1 Millimeter
Bolt Spacing:3.09 Inch | 78.486 Millimeter
Cartridge Pilot Diameter:3.625 Inch | 92.08 Millimeter
Cartridge Pilot Depth:0.94 Inch | 23.876 Millimeter
D:1.98 Inch | 50.3 Millimeter
