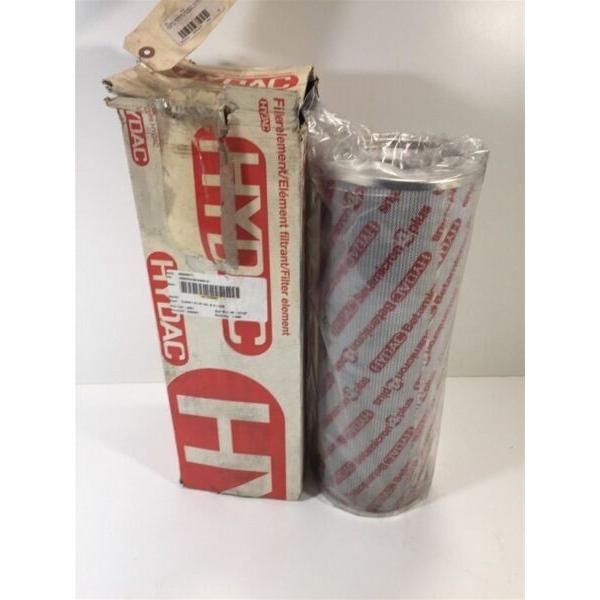

Replacement Hydac 1.03.16R Series Filter Elements image

Back to product page

Specifications for Filteration & Filter Elements

C:18 mm
rn:0,5 mm
r min.:1,1 mm
da min.:91,5 mm
da max:94 mm
Da max.:113,5 mm
ra max.:1 mm
Weight:0,536 Kg
Basic dynamic load rating (C):32 kN
Basic static load rating (C0):29,6 kN
(Grease) Lubrication Speed:5 400 r/min
Category:Single Row Ball Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:0.526
Product Group:B00308
Enclosure:2 Metal Shields
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Rolling Element:Ball Bearing
Snap Ring:No
Internal Special Features:No
Cage Material:Steel
Internal Clearance:C0-Medium
Inch - Metric:Metric
Long Description:85MM Bore; 120MM Outside Diameter; 18MM Outer Race Diameter; 2 Metal Shields; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features
UNSPSC:31171504
Harmonized Tariff Code:8482.10.50.68
Noun:Bearing
Keyword String:Ball
Manufacturer Item Number:6917ZZ/2AS
Weight / LBS:1.162
Outer Race Width:0.709 Inch | 18 Millimeter
Outside Diameter:4.724 Inch | 120 Millimeter
Bore:3.346 Inch | 85 Millimeter
bore diameter::85 mm
precision rating::ISO Class 0
outside diameter::120 mm
finish/coating::Uncoated
overall width::18 mm
bearing material::High Carbon Chrome Steel
bore type::Round
cage material::Steel
closure type::Double Shielded
inner ring width::18 mm
row type & fill slot::Single Row Non-Fill Slot
outer ring width::18 mm
snap ring included::Without Snap Ring
maximum rpm (grease)::5400 rpm
internal clearance::CN
fillet radius::1.1 mm
operating temperature range::-40 to 120 ºC
maximum rpm::6300 RPM
dynamic load capacity::32000 N
series::69
static load capacity::29600 N
