NTN 6005ZNR - Leader Industrial Manufacture

✖

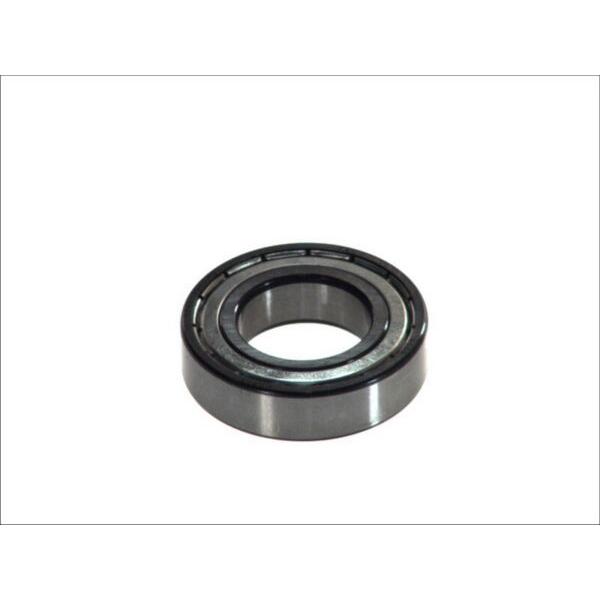

NTN 6005ZNR image

NTN 6005ZNR Characteristics

Number of Rows of Balls:Double Row
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Snap Ring:No
Cage Material:Steel
Contact Angle:20 Degree
Number of Bearings:1 (Single)
Inch - Metric:Metric
Long Description:30MM Bore; 72MM Outside Diameter; 30.2MM Width; Open; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring
UNSPSC:31171531
Harmonized Tariff Code:8482.10.50.28
Noun:Bearing
Keyword String:Angular Contact
Manufacturer Item Number:5306K
Weight / LBS:1.383
D:2.835 Inch | 72 Millimeter
B:1.189 Inch | 30.2 Millimeter
d:1.181 Inch | 30 Millimeter
d - Bore:30 mm
D - Outer Diameter:72 mm
C - Ring Width:30.170 mm
do - Ball Diameter:11.906 mm
C0 - Static Radial Rating:29000 N
Ce - Dynamic Radial Rating1:47000 N
Ball Type:STEEL
Cage Type:Snap In
Bearing Weight:0.612 Kg
Design Units:METRIC
R - Inner Ring To Clear Radius2:1.0 mm
r - Outer Ring To Clear Radius3:1.0 mm
da - Inner Ring Backing Diameter:36.830 mm
Da - Outer Ring Backing Diameter:63.500 mm
