NTN 6203LLBC3/L627 - Leader Industrial Manufacture

✖

Home>Products>Ball Bearings>NTN 6203LLBC3/L627 image

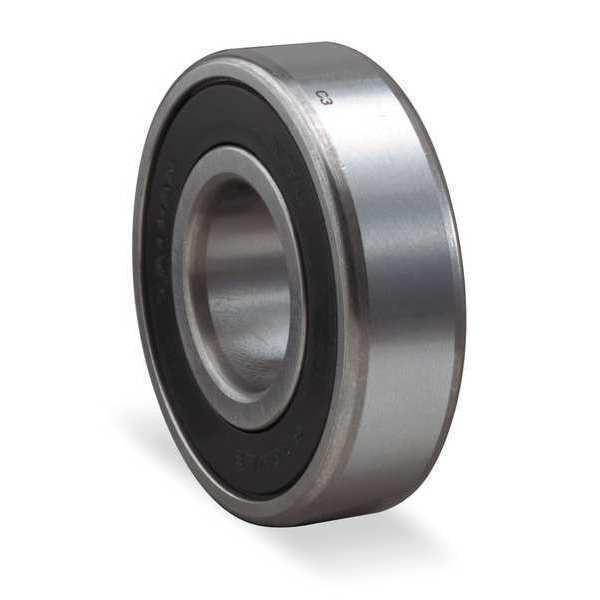

NTN 6203LLBC3/L627 image

NTN 6203LLBC3/L627 Characteristics

C:17 mm
r min.:1.1 mm
da min.:42 mm
Da max.:65 mm
ra max.:1.0 mm
Weight:0.288 Kg
Basic dynamic load rating (C):25,7 kN
Basic static load rating (C0):15,3 kN
(Grease) Lubrication Speed:9000 r/min
Category:Single Row Ball Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Product Group:B00308
Enclosure:Open
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Rolling Element:Ball Bearing
Snap Ring:No
Internal Special Features:No
Cage Material:Steel
Internal Clearance:C0-Medium
Inch - Metric:Metric
Long Description:35MM Bore; 72MM Outside Diameter; 17MM Outer Race Width; Open; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features; C0-Medium Internal Clearance; Steel Cage
Other Features:Deep Groove
UNSPSC:31171504
Harmonized Tariff Code:8482.10.50.68
Noun:Bearing
Keyword String:Ball
Outer Race Width:0.669 Inch | 17 Millimeter
Inner Race Width:0 Inch | 0 Millimeter
Outside Diameter:2.835 Inch | 72 Millimeter
Bore:1.378 Inch | 35 Millimeter
Bore Type:Cylindrical Bore
Configuration:Single Row
Bore Size:35 mm
Width:17 mm
Fillet Radius/Chamfer:1.1 mm
Dynamic Load Rating:25,700 N
Static Load Rating:15,300 N
Limiting Speed - Grease:9,800 rpm
Limiting Speed - Oil:11,000 rpm
Factor fo:13.8
Radial Clearance:0.006 to 0.020 mm
da (min):42 mm
Da (max):65 mm
ra (max):1 mm
