Home>Products>Roller Bearings>INA LS3552 image

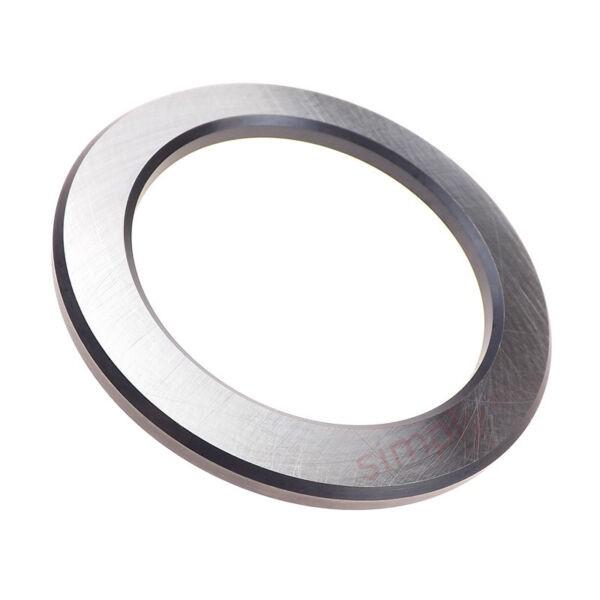

INA LS3552 image

Back to product page

Customers who bought this item also bought Roller Bearings

d1:140 mm
r1 min.:1,5 mm
r2 min.:1,5 mm
D1:82 mm
da min.:116 mm
Da max.:104 mm
ra max.:1.5 mm
Weight:2,7 Kg
Basic dynamic load rating (C):159 kN
Basic static load rating (C0):390 kN
Fatigue load limit (Pu):13,7
Reference speed:1700 r/min
Limiting speed:2400 r/min
Category:Thrust Ball Bearings
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:2.703
Product Group:B00308
Rolling Element:Ball Bearing
Thrust Bearing:Yes
Single or Double Direction:Single Direction
Banded:No
Cage Material:Steel
Precision Class:ABEC 1 | ISO P0
Component Description:Roller Assembly Plus Raceways
Other Features:Single Row
Long Description:80MM Bore 1; 82MM Bore 2; 140MM Outside Diameter; 44MM Height; Ball Bearing; Single Direction; Not Banded; Steel Cage; ABEC 1 | ISO P0 Precision
Inch - Metric:Metric
UNSPSC:31171507
Harmonized Tariff Code:8482.10.50.08
Noun:Bearing
Keyword String:Ball Thrust
Manufacturer Item Number:51316
Weight / LBS:5.953
Outside Diameter:5.512 Inch | 140 Millimeter
Bore 1:3.15 Inch | 80 Millimeter
Bore 2:3.228 Inch | 82 Millimeter
Height:1.732 Inch | 44 Millimeter
Overall Height with Aligning Washer:0 Inch | 0 Millimeter
bore diameter::80 mm
static load capacity::390 kN
outside diameter::140 mm
dynamic load capacity::159 kN
overall width::44 mm
maximum rpm::2400 RPM
thrust bearing type::Single-Direction
cage material::Steel
outside diameter design::Straight
fillet radius::1.5 mm
separable or banded::Separable
series::513
precision rating::ABEC 1 (ISO Class Normal)
d1 ≈:140 mm
D1 ≈:82 mm
r1,2 min.:1.5 mm
Basic dynamic load rating C:159 kN
Basic static load rating C0:390 kN
Fatigue load limit Pu:13.7 kN
Minimum load factor A:0.79
Mass bearing (including seat washer where applicable):2.7 kg
