IKO RNA4840 - Leader Industrial Manufacture

✖

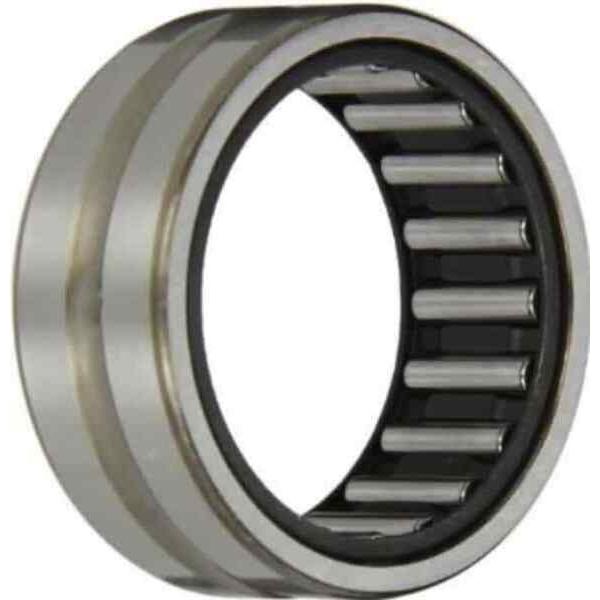

IKO RNA4840 image

Customers who bought this item also bought Roller Bearings

Seal Type:Double Land Riding Rubber Contact
Mounting Method:Set Screw
Rolling Element:Ball Bearing
Snap Ring:No
Long Description:1-3/8" Bore; Narrow Inner Ring; Ball Bearing; 1.444" Length Thru Bore; 0.748" Outer Race Width; 2.835" Outside Diameter; Relubricatable; Double Land Riding Rubber Contact Seal; Set
Inch - Metric:Inch
Other Features:Single Row | Standard Duty
UNSPSC:31171536
Harmonized Tariff Code:8482.10.50.00
Noun:Bearing
Keyword String:Insert
Manufacturer Item Number:GYA106RRB
Weight / LBS:0.93
d:1.375 Inch | 34.925 Millimeter
D:2.835 Inch | 72.009 Millimeter
Outer Race Width:0.748 Inch | 18.999 Millimeter
Shaft Size d:1 3/8 in
Bore Type:Cylindrical bore
Bearing Type:Ball Bearing
Material:Bearing Steel
Lubrication Type:Relubricatable
O.D. Type:Spherical OD
Dimension M:0.145 in
Series:Standard
Sub Series:GYA..RRB
Outside Diameter D:2.835 in
Inner Ring Width B:36.50 mm
Outside Ring Width C:19.000 mm
Radius r:0.6 mm
Center of Bearing from End S:10.85 mm
Dimension S1:25.65 mm
Set Screw Distance S2:7.87 mm
Set Screw Size:M8x1.25
Number of Set Screws:2
Angle between Set Screws:90 º
Static Load Rating:3440 lbf
Dynamic Load Rating:6400 lbf
