INA SL045015PP2NR - Leader Industrial Manufacture

✖

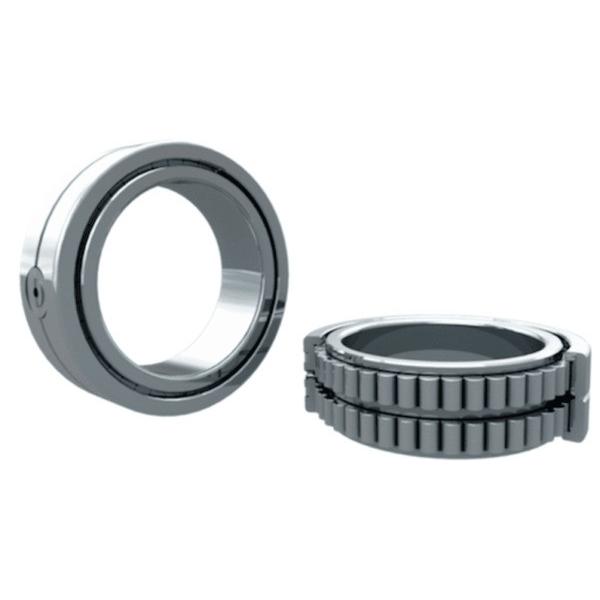

INA SL045015PP2NR image

Customers who bought this item also bought Roller Bearings

C:45 mm
r min.:3 mm
da min.:109 mm
Da max.:186 mm
ra max.:2.5 mm
Weight:5.67 Kg
Basic dynamic load rating (C):153 kN
Basic static load rating (C0):118 kN
(Grease) Lubrication Speed:3200 r/min
Category:Single Row Ball Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Product Group:B00308
Enclosure:Open
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Rolling Element:Ball Bearing
Snap Ring:No
Internal Special Features:No
Cage Material:Steel
Internal Clearance:C0-Medium
Inch - Metric:Metric
Long Description:95MM Bore; 200MM Outside Diameter; 45MM Outer Race Width; Open; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features; C0-Medium Internal Clearance; Steel Cage
Other Features:Deep Groove
UNSPSC:31171504
Harmonized Tariff Code:8482.10.50.68
Noun:Bearing
Keyword String:Ball
Outside Diameter:7.874 Inch | 200 Millimeter
Bore:3.74 Inch | 95 Millimeter
Outer Race Width:1.772 Inch | 45 Millimeter
Inner Race Width:0 Inch | 0 Millimeter
Bore Type:Cylindrical Bore
Configuration:Single Row
Bore Size:95 mm
Width:45 mm
Fillet Radius/Chamfer:3 mm
Dynamic Load Rating:153,000 N
Static Load Rating:118,000 N
Limiting Speed - Grease:3,300 rpm
Limiting Speed - Oil:3,900 rpm
Factor fo:13.3
Radial Clearance:0.012 to 0.036 mm
da (min):109 mm
Da (max):186 mm
ra (max):2.5 mm
