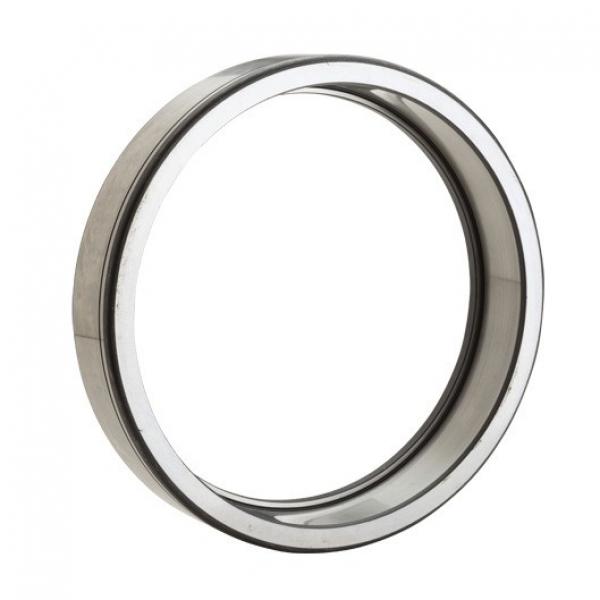

NTN W67320SA - Leader Industrial Manufacture

✖

NTN W67320SA image

Customers who bought this item also bought Roller Bearings

Seal Type:Double Land Riding Rubber Contact
Mounting Method:Eccentric Collar
Rolling Element:Ball Bearing
Snap Ring:No
Long Description:1-3/16" Bore; Wide Inner Ring; Ball Bearing; 1-29/32" Length Thru Bore; 0.709" Outer Race Width; 2.441" Outside Diameter; Relubricatable; Double Land Riding Rubber Contact Seal; Ec
Inch - Metric:Inch
Other Features:Single Row | Standard Duty
UNSPSC:31171536
Harmonized Tariff Code:8482.10.50.00
Noun:Bearing
Keyword String:Insert
Manufacturer Item Number:G1103KRRB AG
Weight / LBS:0.83
D:1.906 Inch | 48.412 Millimeter
Outer Race Width:0.709 Inch | 18.009 Millimeter
d:1.188 Inch | 30.175 Millimeter
Shaft Size d:1 3/16 in
Bore Type:Cylindrical bore
Bearing Type:Ball Bearing
Material:Bearing Steel
Lubrication Type:Relubricatable
O.D. Type:Spherical OD
Dimension M:0.156 in
Dimension B2:0.626 in
Series:Industrial
Sub Series:G1…KRRB
Outside Diameter D:2.441 in
Inner Ring Width B:36.51 mm
Outside Ring Width C:18.000 mm
Radius r:0.6 mm
Center of Bearing from End S:18.3 mm
Dimension S1:30.1 mm
Set Screw Size:5/16-18
Number of Set Screws:2
Angle between Set Screws:90 º
Dimension B1:1.906 in
Static Load Rating:2530 lbf
Dynamic Load Rating:4850 lbf
