SKF N 316 ECM/C3 - Leader Industrial Manufacture

✖

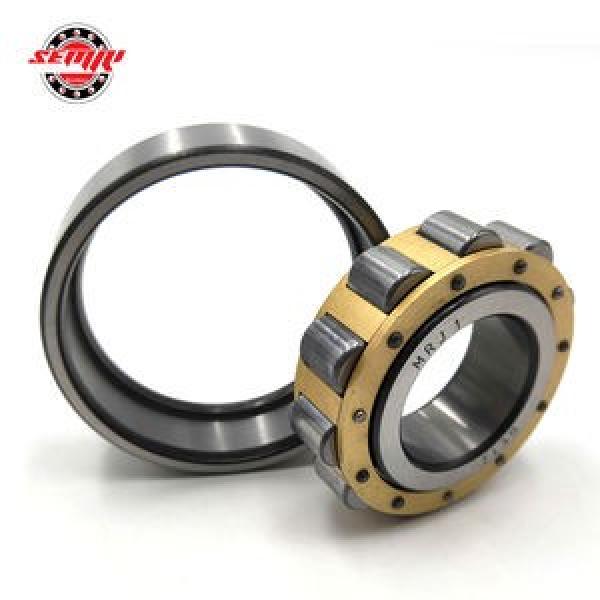

SKF N 316 ECM/C3 image

Customers who bought this item also bought Roller Bearings

Number of Rows of Rollers:Single Row
Separable:Inner Ring - Both Sides
Rolling Element:Cylindrical Roller Bearing
Profile:Complete with Outer and Inner Ring
Snap Ring:No
Internal Clearance:C3-Loose
Retainer:Yes
Relubricatable:Yes
Inch - Metric:Metric
Other Features:Plain Inner Ring | 2 Rib Outer Ring | Cage on Outer Ring ID
Long Description:260MM Bore; Straight Bore Profile; 480MM Outside Diameter; 80MM Width; Brass Cage Matetrial; RBEC 1 | ISO P0; Single Row; Inner Ring - Both Sides Separable; No Snap Ring; Relubricatable; C3-Loose Inte
UNSPSC:31171547
Harmonized Tariff Code:8482.50.00.00
Noun:Bearing
Manufacturer Item Number:NU 252 MA/C3
Weight / LBS:175.113
D:18.898 Inch | 480 Millimeter
d:10.236 Inch | 260 Millimeter
B:3.15 Inch | 80 Millimeter
bore diameter::260 mm
static load capacity::1700 kN
outside diameter::480 mm
maximum rpm::2000 rpm
overall width::80 mm
bearing material::Steel
flanges::(2) Flanges on outer Ring, Flangeless Inner Ring
cage material::Brass
bore type::Straight
finish/coating::Uncoated
number of rows::1
closure type::Open
internal clearance::C3
series::NU
operating temperature range::Maximum 302 °F
manufacturer upc number::7316577314758
dynamic load capacity::1170 kN
