INA LR5204-2HRS-TVH - Leader Industrial Manufacture

✖

Home>Products>Roller Bearings>INA LR5204-2HRS-TVH image

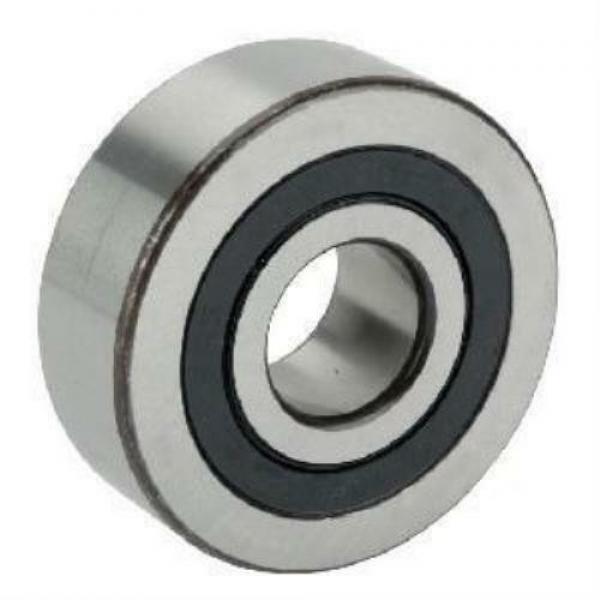

INA LR5204-2HRS-TVH image

Customers who bought this item also bought Roller Bearings

Number of Rows of Balls:Double Row
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Snap Ring:No
Cage Material:Steel
Contact Angle:20 Degree
Number of Bearings:1 (Single)
Inch - Metric:Metric
Long Description:35MM Bore; 80MM Outside Diameter; 34.9MM Width; Open; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring
UNSPSC:31171531
Harmonized Tariff Code:8482.10.50.28
Noun:Bearing
Keyword String:Angular Contact
Manufacturer Item Number:5307K
Weight / LBS:1.965
d:1.378 Inch | 35 Millimeter
D:3.15 Inch | 80 Millimeter
B:1.374 Inch | 34.9 Millimeter
d - Bore:35 mm
D - Outer Diameter:80 mm
C - Ring Width:34.930 mm
do - Ball Diameter:13.494 mm
C0 - Static Radial Rating:36000 N
Ce - Dynamic Radial Rating1:59500 N
Ball Type:STEEL
Cage Type:Snap In
Bearing Weight:0.871 Kg
Design Units:METRIC
R - Inner Ring To Clear Radius2:1.5 mm
r - Outer Ring To Clear Radius3:1.5 mm
da - Inner Ring Backing Diameter:44.070 mm
Da - Outer Ring Backing Diameter:70.100 mm
