NTN 63307ZZC3/EM - Leader Industrial Manufacture

✖

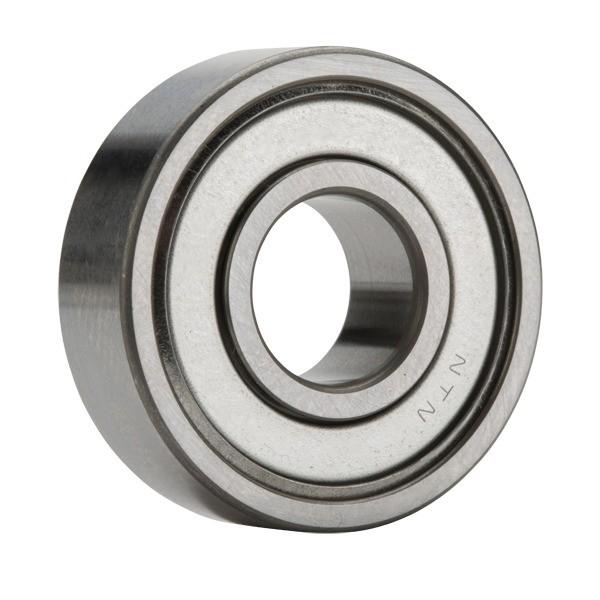

NTN 63307ZZC3/EM image

NTN 63307ZZC3/EM Characteristics

C:27 mm
d1:68,7 mm
r1 min.:2 mm
r2 min.:2 mm
D2:95,2 mm
Weight:1,1 Kg
Temperature -:30 to +250 °
Basic static load rating (C0):38 kN
Category:Single Row Ball Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Product Group:B00308
Enclosure:2 Metal Shields
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Rolling Element:Ball Bearing
Snap Ring:No
Internal Special Features:Polyalkylene Glycol/Graphite Mixture Filled
Cage Material:Steel
Internal Clearance:C0-Medium
Inch - Metric:Metric
Long Description:50MM Bore; 110MM Outside Diameter; 27MM Outer Race Width; 2 Metal Shields; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; Polyalkylene Glycol/Graphite Mixture Filled Internal Special Fe
Other Features:Deep Groove | Extreme Temperature Variant
UNSPSC:31171504
Harmonized Tariff Code:8482.10.50.68
Noun:Bearing
Keyword String:Ball
Weight / LBS:1.1
Outside Diameter:4.331 Inch | 110 Millimeter
Inner Race Width:0 Inch | 0 Millimeter
Bore:1.969 Inch | 50 Millimeter
Outer Race Width:1.063 Inch | 27 Millimeter
d1 ≈:68.76 mm
D2 ≈:95.2 mm
r1,2 min.:2 mm
da min.:61 mm
da max.:68.7 mm
Da max.:99 mm
ra max.:2 mm
Basic dynamic load rating C:65 kN
Basic static load rating C0:38 kN
Limiting speed:50 r/min
Limiting temperature T max.:250 °C
Mass bearing:1.12 kg
