NTN 6909LLB - Leader Industrial Manufacture

✖

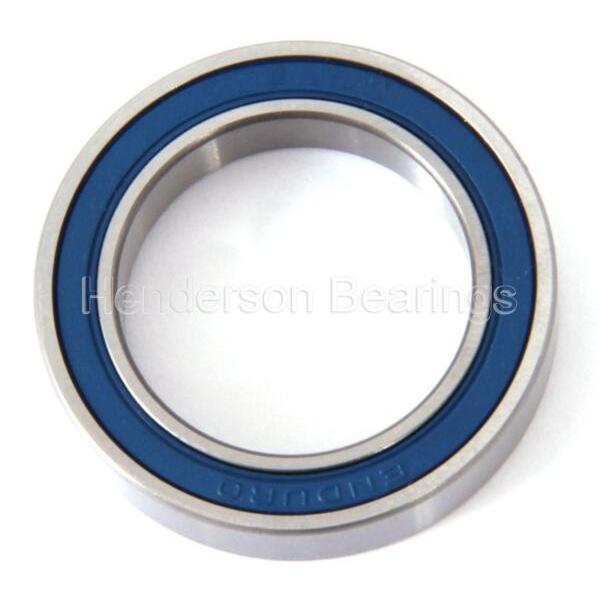

NTN 6909LLB image

NTN 6909LLB Characteristics

Seal Type:Double Land Riding Rubber Contact
Mounting Method:Eccentric Collar
Rolling Element:Ball Bearing
Snap Ring:No
Long Description:1-5/8" Bore; Narrow Inner Ring; Ball Bearing; 1.719" Length Thru Bore; 0.866" Outer Race Width; 3.347" Outside Diameter; Not Relubricatable; Double Land Riding Rubber Contact Seal;
Inch - Metric:Inch
Other Features:Single Row | Standard Duty
UNSPSC:31171536
Harmonized Tariff Code:8482.10.50.00
Noun:Bearing
Keyword String:Insert
Manufacturer Item Number:RA110RRB AG
Weight / LBS:1.72
d:1.625 Inch | 41.275 Millimeter
Outer Race Width:0.866 Inch | 21.996 Millimeter
D:3.347 Inch | 85.014 Millimeter
Shaft Size d:1 5/8 in
Bore Type:Cylindrical bore
Bearing Type:Ball Bearing
Material:Bearing Steel
Lubrication Type:Non-Relubricatable
O.D. Type:Spherical OD
Dimension B2:0.720 in
Series:Standard
Sub Series:RA..RRB
Outside Diameter D:3.346 in
Inner Ring Width B:30.18 mm
Outside Ring Width C:22.000 mm
Radius r:0.6 mm
Center of Bearing from End S:11 mm
Dimension S1:32.7 mm
Set Screw Size:3/8-16
Number of Set Screws:2
Angle between Set Screws:90 º
Dimension B1:1.72 in
Static Load Rating:4600 lbf
Dynamic Load Rating:8160 lbf
