NSK 6203-08ZZC3 - Leader Industrial Manufacture

✖

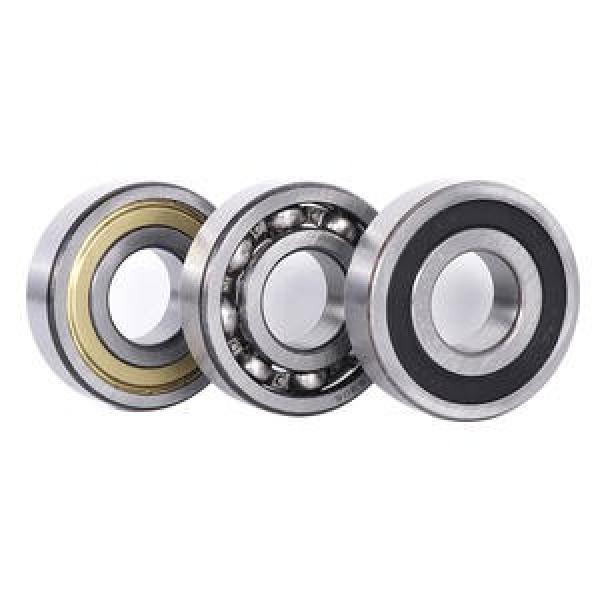

NSK 6203-08ZZC3 image

NSK 6203-08ZZC3 Characteristics

Rolling Element:Ball Bearing
Snap Ring:No
Internal Special Features:No
Cage Material:Steel
Internal Clearance:C3-Loose
Inch - Metric:Metric
Long Description:90MM Bore; 190MM Outside Diameter; 43MM Outer Race Diameter; Open; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features
UNSPSC:31171504
Harmonized Tariff Code:8482.10.50.68
Noun:Bearing
Keyword String:Ball
Manufacturer Item Number:318K
Weight / LBS:11.29
d:3.543 Inch | 90 Millimeter
Outer Race Width:1.693 Inch | 43 Millimeter
D:7.48 Inch | 190 Millimeter
Design Units:METRIC
Ball Type:STEEL
Bearing Weight:5.121 Kg
d - Bore:90 mm
D - Outer Diameter:190 mm
Bearing Width:43 mm
do - Ball Diameter:31.750 mm
Ce - Dynamic Radial Rating1:162000 N
C0 - Static Radial Rating:106000 N
Limiting Speed (Grease):2140 rpm
Limiting Speed (Oil):2500 rpm
R - Inner Ring To Clear Radius2:3.0 mm
r - Outer Ring To Clear Radius3:3.0 mm
da - Inner Ring Backing Diameter:103.900 mm
Da - Outer Ring Backing Diameter:176.0 mm
