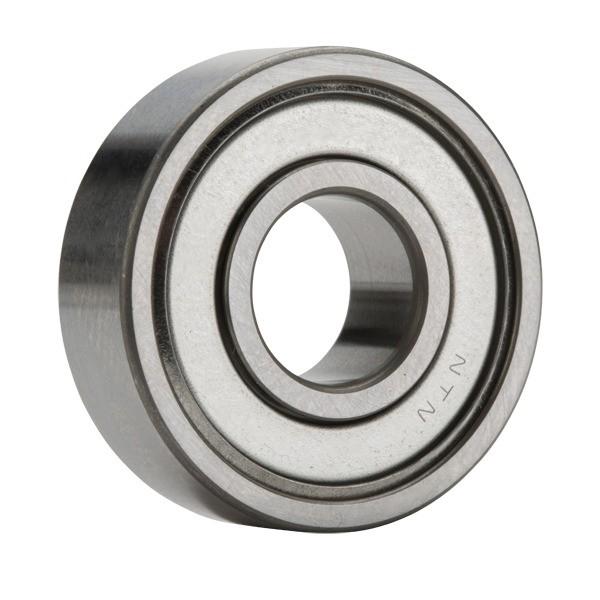

NTN 6022ZZC3/EM image

Back to product page

NTN 6022ZZC3/EM Characteristics

d1:94.15 mm
d2:78.45 mm
D1:112.85 mm
a:60 mm
r1,2 - min.:2.1 mm
r3,4 - min.:1.1 mm
da - min.:77 mm
Da - max.:128 mm
Db - max.:133 mm
ra - max.:2 mm
rb - max.:1 mm
Basic dynamic load rating - C:108 kN
Basic static load rating - C0:80 kN
Fatigue load limit - Pu:3.4 kN
Reference speed:5600 r/min
Limiting speed:5600 r/min
Calculation factor - kr:0.1
Calculation factor - ka:1.6
Calculation factor - e:1.14
Calculation factor - X:0.35
Calculation factor - Y0:0.26
Calculation factor - Y1:0.55
Calculation factor - Y2:0.57
Category:Angular Contact Ball Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:2.392
Product Group:B00308
Enclosure:Open
Flush Ground:Yes
Rolling Element:Ball Bearing
Number of Rows of Balls:Single Row
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Snap Ring:No
Cage Material:Steel
Contact Angle:40 Degree
Internal Clearance:C0-Medium
Number of Bearings:1 (Single)
Preload:Light
Mounting Arrangement:Universal
Inch - Metric:Metric
Long Description:65MM Bore; 140MM Outside Diameter; 33MM Width; Open; Yes Flush Ground; Ball Bearing; Single Row of Balls; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C0-Medium; Steel Cage; 40 Degree; 1 (Single);
UNSPSC:31171531
Harmonized Tariff Code:8482.10.50.28
Noun:Bearing
Keyword String:Angular Contact
Manufacturer Item Number:7313 BEGAF
Outside Diameter:5.512 Inch | 140 Millimeter
Width:1.299 Inch | 33 Millimeter
Bore:2.559 Inch | 65 Millimeter
bore diameter::65 mm
radial static load capacity::80 kN
outside diameter::140 mm
outer ring width::33 mm
overall width::33 mm
maximum rpm::5600 RPM
row type & fill slot::Single-Row Non-Fill Slot
finish/coating::Uncoated
internal clearance::C0
precision rating::Not Rated
closure type::Open
fillet radius::2 mm
radial dynamic load capacity::108 kN
series::73
d1 ≈:94.15 mm
d2 ≈:78.45 mm
D1 ≈:112.85 mm
r1,2 min.:2.1 mm
r3,4 min.:1.1 mm
da min.:77 mm
Da max.:128 mm
Db max.:133 mm
ra max.:2 mm
rb max.:1 mm
Basic dynamic load rating C:108 kN
Basic static load rating C0:80 kN
Fatigue load limit Pu:3.35 kN
Calculation factor A:0.112
Calculation factor kr:0.1
Calculation factor e:1.14
Calculation factor X:0.57
Calculation factor Y0:0.52
Calculation factor Y2:0.93
Calculation factor Y1:0.55
Mass bearing:2.15 kg
