NTN 6017NR - Leader Industrial Manufacture

✖

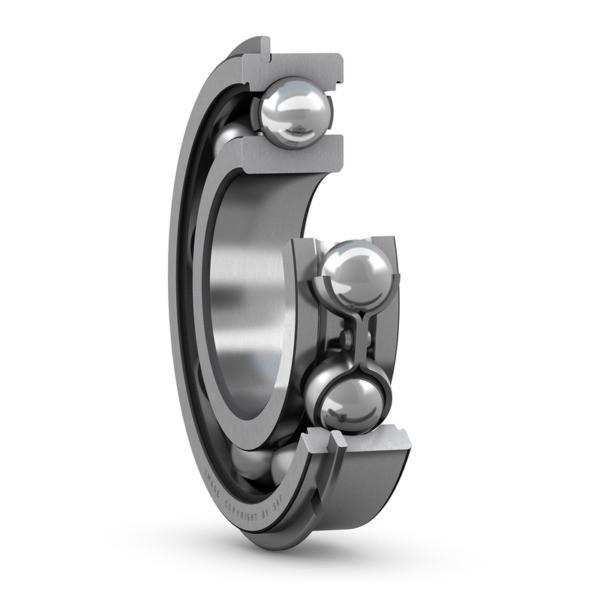

NTN 6017NR image

NTN 6017NR Characteristics

Number of Rows of Balls:Single Row
Precision Class:ABEC 3 | ISO P6
Maximum Capacity / Filling Slot:No
Snap Ring:No
Cage Material:Brass
Contact Angle:35 Degree | 4 Point
Internal Clearance:C0-Medium
Number of Bearings:1 (Single)
Inch - Metric:Metric
Long Description:180MM Bore; 320MM Outside Diameter; 52MM Width; Open; No Flush Ground; Ball Bearing; Single Row of Balls; ABEC 3 | ISO P6; No Filling Slot; No Snap Ring
Other Features:Split Inner Race
UNSPSC:31171531
Harmonized Tariff Code:8482.10.50.28
Noun:Bearing
Keyword String:Angular Contact
Manufacturer Item Number:QJ 236 N2MA
Weight / LBS:42.241
d:180 mm
B:52 mm
D:320 mm
inside diameter::180 mm
precision rating::Not Rated
outside diameter::320 mm
cage material::Brass
overall width::52 mm
maximum rpm::3400 RPM
internal clearance::C0
finish/coating::Uncoated
closure type::Open
outer ring width::52 mm
radial dynamic load capacity::475 kN
fillet radius::3 mm
radial static load capacity::765 kN
series::QJ
d1 ≈:231 mm
D1 ≈:269 mm
a:175 mm
h:12.7 mm
b:10.5 mm
r0:2 mm
r1,2 min.:4 mm
da min.:197 mm
Da max.:303 mm
ra max.:3 mm
Basic dynamic load rating C:475 kN
Basic static load rating C0:765 kN
Fatigue load limit Pu:20.8 kN
Limiting speed:3400 r/min
Calculation factor A:1.39
Calculation factor e:0.95
Calculation factor X:0.6
Calculation factor Y0:0.58
Calculation factor Y1:0.66
Calculation factor Y2:1.07
Mass bearing:20.5 kg
