NTN BNT002/GNP2 - Leader Industrial Manufacture

✖

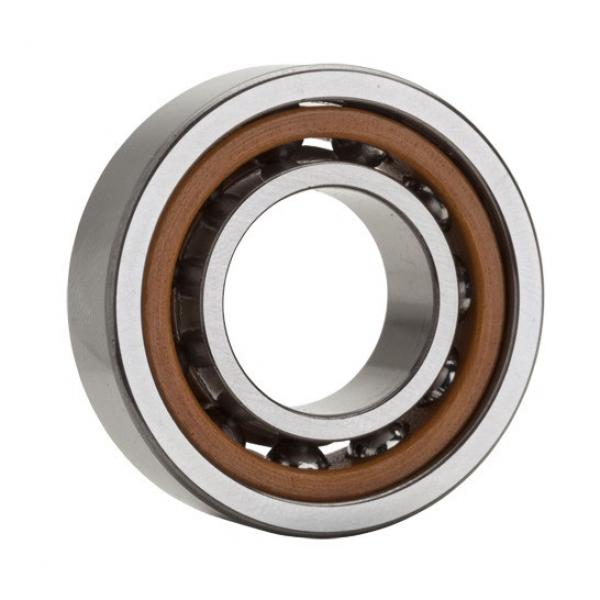

NTN BNT002/GNP2 image

NTN BNT002/GNP2 Characteristics

Rolling Element:Ball Bearing
Snap Ring:No
Internal Special Features:No
Cage Material:Brass
Internal Clearance:C3-Loose
Inch - Metric:Metric
Long Description:170MM Bore; 260MM Outside Diameter; 42MM Outer Race Diameter; Open; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features
UNSPSC:31171504
Harmonized Tariff Code:8482.10.50.68
Noun:Bearing
Keyword String:Ball
Manufacturer Item Number:6034 M/C3
Weight / LBS:17.81
Outer Race Width:1.654 Inch | 42 Millimeter
d:6.693 Inch | 170 Millimeter
D:10.236 Inch | 260 Millimeter
bore diameter::170 mm
static load capacity::173 kN
outside diameter::260 mm
precision rating::ABEC 1 (ISO Class Normal)
overall width::42 mm
finish/coating::Uncoated
bore type::Round
cage material::Brass
closure type::Open
outer ring width::42 mm
row type & fill slot::Single Row Non-Fill Slot
fillet radius::2 mm
snap ring included::Without Snap Ring
maximum rpm::3200 RPM
internal clearance::C3
series::60
dynamic load capacity::168 kN
