SKF 71922 CD/P4ATBTA - Leader Industrial Manufacture

✖

Home>Products>Ball Bearings>SKF 71922 CD/P4ATBTA image

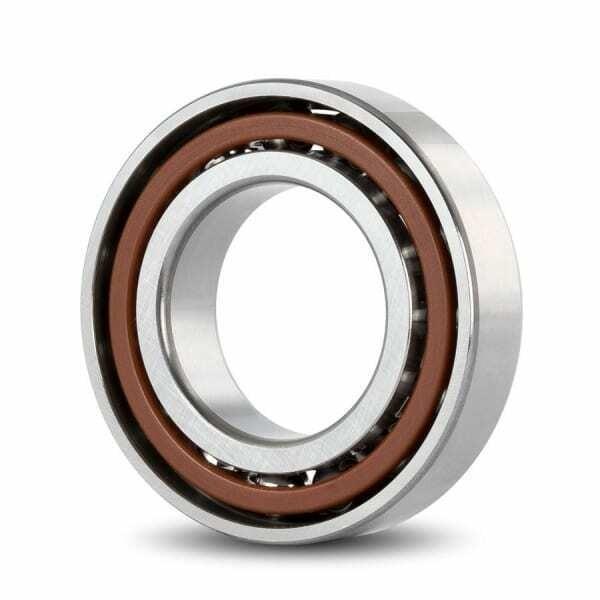

SKF 71922 CD/P4ATBTA image

SKF 71922 CD/P4ATBTA Characteristics

C:39 mm
Angle (α):25 °
a:55,5 mm
r min.:2,1 mm
r1 min.:1,1 mm
da min.:92 mm
db min:87 mm
ra max.:2 mm
Weight:3,65 Kg
Basic dynamic load rating (C):147 kN
Basic static load rating (C0):119 kN
(Grease) Lubrication Speed:4 500 r/min
Contact angle α:30 °
rs min:2.1 mm
r1s min:1.1 mm
Mass:3.65 kg
Dynamic load, C:147 kN
Static load, C0:119 kN
Fatigue limit load, Cu:4.85 kN
Nlim (oil):5,900 rpm
Nlim (grease):4,500 rpm
Min operating temperature, Tmin:-40 °C
Max operating temperature, Tmax:120 °C
da min:92 mm
Da max:158 mm
Db max:163 mm
r1a max:1 mm
ra max:2 mm
Category:Angular Contact Ball Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:3.728
Product Group:B00308
Enclosure:Open
Flush Ground:No
Rolling Element:Ball Bearing
Number of Rows of Balls:Single Row
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Snap Ring:No
Cage Material:Steel
Contact Angle:30 Degree
Internal Clearance:C0-Medium
Number of Bearings:1 (Single)
Inch - Metric:Metric
Long Description:80MM Bore; 170MM Outside Diameter; 39MM Width; Open; No Flush Ground; Ball Bearing; Single Row of Balls; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C0-Medium; Steel Cage; 30 Degree; 1 (Single)
UNSPSC:31171531
Harmonized Tariff Code:8482.10.50.28
Noun:Bearing
Keyword String:Angular Contact
Manufacturer Item Number:7316
Bore:3.15 Inch | 80 Millimeter
Outside Diameter:6.693 Inch | 170 Millimeter
Width:1.535 Inch | 39 Millimeter
