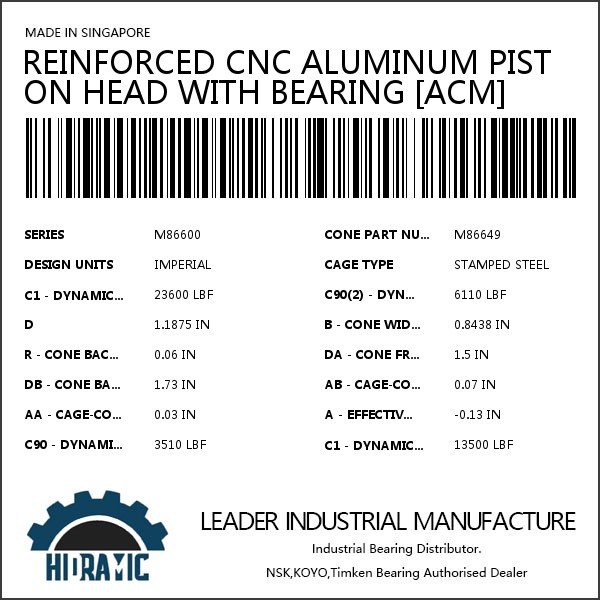

REINFORCED CNC ALUMINUM PISTON HEAD WITH BEARING [ACM] Product identifiers

R - Cone Backface To Clear Radius3:0.06 in
da - Cone Frontface Backing Diameter:1.5 in
db - Cone Backface Backing Diameter:1.73 in
Ab - Cage-Cone Frontface Clearance:0.07 in
Aa - Cage-Cone Backface Clearance:0.03 in
a - Effective Center Location4:-0.13 in
C90 - Dynamic Radial Rating (90 million revolutions)5:3510 lbf
C1 - Dynamic Radial Rating (1 million revolutions)6:13500 lbf
C0 - Static Radial Rating:16100 lbf
Ca90 - Dynamic Thrust Rating (90 million revolutions)7:3280 lbf
K - Factor8:1.07
G1 - Heat Generation Factor (Roller-Raceway):16.8
G2 - Heat Generation Factor (Rib-Roller End):9.36
Cg - Geometry Factor:0.0736
