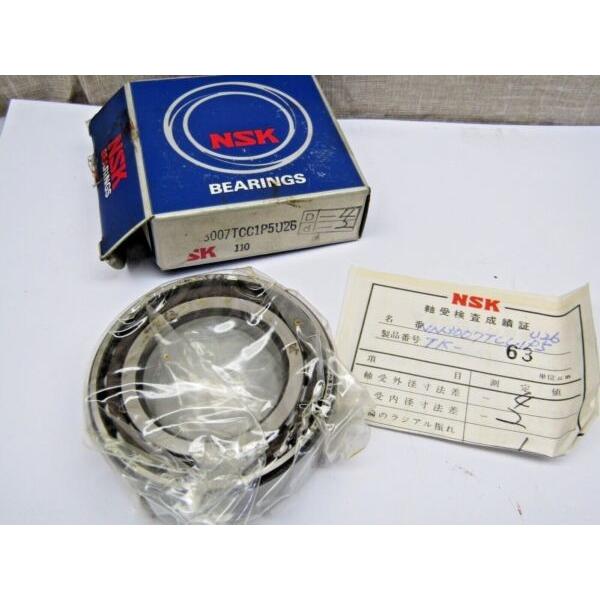

NSK BEARING NN3007TCC1P5U26 NIB image

Back to product page

NSK BEARING NN3007TCC1P5U26 NIB Code system

C:26 mm
b:– mm
d1:73.3 mm
r1 min.:1,1 mm
r2 min.:1,1 mm
r3 min.:0,6 mm
r4 min.:0,6 mm
E:86,1 mm
K:– mm
da min.:66.5 mm
Da min:87 mm
Da max.:88.5 mm
ra max.:1 mm
S:1,5 mm
dh:85 mm
Weight:0,66 Kg
Basic dynamic load rating (C):73,7 kN
Basic static load rating (C0):106 kN
(Grease) Lubrication Speed:9 500 r/min
(Oil) Lubrication Speed:11 000 r/min
Category:Cylindrical Roller Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:0.671
Product Group:B04270
Bore Profile:Tapered
Cage Material:Polymer
Precision Class:Special Precision
Number of Rows of Rollers:Double Row
Separable:Outer Ring - Both Sides
Rolling Element:Cylindrical Roller Bearing
Profile:Complete with Outer and Inner Ring
Snap Ring:No
Internal Clearance:C1-Tight
Retainer:Yes
Relubricatable:Yes
Inch - Metric:Metric
Other Features:3 Rib Inner Ring | Plain Outer Ring | High Precision Bearing | Cage on Inner Ring OD
Long Description:60MM Bore; Tapered Bore Profile; 95MM Outside Diameter; 26MM Width; Polymer Cage Matetrial; Special Precision; Double Row; Outer Ring - Both Sides Separable; No Snap Ring; Relubricatable; C1-Tight Int
UNSPSC:31171547
Harmonized Tariff Code:8482.50.00.00
Noun:Bearing
Manufacturer Item Number:NN 3012 KTN/SP
Weight / LBS:1.477
Outside Diameter:3.74 Inch | 95 Millimeter
Bore:2.362 Inch | 60 Millimeter
Width:1.024 Inch | 26 Millimeter
bore diameter::60 mm
precision rating::Not Rated
outside diameter::95 mm
maximum rpm::10000 RPM
overall width::26 mm
bearing material::Chrome Steel
flanges::(3) Inner Ring
cage material::Polyamide
bore type::Straight
finish/coating::Uncoated
number of rows::2
closure type::Open
internal clearance::C1
outer ring width::26 mm
operating temperature range::Maximum of +120 °C
fillet radius::1.1 mm
dynamic load capacity::73.7 kN
series::NN30
static load capacity::116 kN
r1,2 min.:1.1 mm
r3,4 min.:0.6 mm
s max.:1.5 mm
Da min.:87 mm
dn:85 mm
Basic dynamic load rating C:73.7 kN
Basic static load rating C0:106 kN
Fatigue load limit Pu:12.7 kN
Attainable speed for grease lubrication:9500 r/min
Attainable speed for oil-air lubrication:11000 r/min
Reference grease quantity Gref:3.8 cm³
Static radial stiffness (guideline value):1330 N/µm
Mass bearing:0.66 kg
