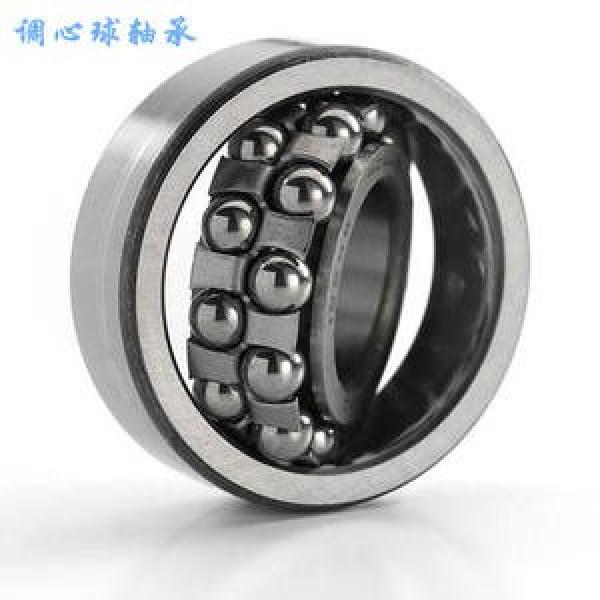

SNR 1203 G15 Bearing image

SNR 1203 G15 Bearing Systems

Cage Material:Polyamide
Precision Class:ABEC 1 | ISO P0
Internal Clearance:C0-Medium
Number of Rows of Balls:Double Row
Other Features:Allowable Misalignment 1.5 Deg | High Capacity Design
Long Description:55MM Bore; Shaft Mount; 100MM Outside Diameter; 25MM Inner Race Width; 25MM Outer Race Width; 2 Seals; Polyamide Cage; Double Row of Balls; ABEC 1 | ISO P0; C0-Medium
Inch - Metric:Metric
UNSPSC:31171532
Harmonized Tariff Code:8482.10.50.68
Noun:Bearing
Keyword String:Self Aligning
Manufacturer Item Number:2211 E-2RS1TN9
Weight / LBS:1.812
d:55 mm
Outer Race Width:0.984 Inch | 25 Millimeter
D:100 mm
Inner Race Width:0.984 Inch | 25 Millimeter
bore diameter::55 mm
precision rating::Not Rated
outside diameter::100 mm
maximum rpm::4300 RPM
overall width::25 mm
cage material::Fiberglass Reinforced Nylon
bore type::Straight
finish/coating::Uncoated
closure type::Double Sealed
maximum misalignment::2.5 °
internal clearance::C0
outer ring width::25 mm
operating temperature range::-40 to +210 °F
fillet radius::1.5 mm
dynamic load capacity::27.6 kN
series::2200
static load capacity::10.6 kN
B:25 mm
d2 ≈:65.9 mm
D2 ≈:88.5 mm
r1,2 min.:1.5 mm
da min.:64 mm
da max.:65.5 mm
Da max.:91 mm
ra max.:1.5 mm
Basic dynamic load rating C:27.6 kN
Basic static load rating C0:10.6 kN
Fatigue load limit Pu:0.54 kN
Limiting speed:4300 r/min
Permissible angular misalignment α:1.5 °
Calculation factor kr:0.045
Calculation factor e:0.19
Calculation factor Y0:3.6
Calculation factor Y1:3.3
Calculation factor Y2:5.1
Mass bearing:0.79 kg
