SNR Bearing 6303.ZZ.J30 - Leader Industrial Manufacture

✖

Home>Products>snr bearing>SNR Bearing 6303.ZZ.J30 image

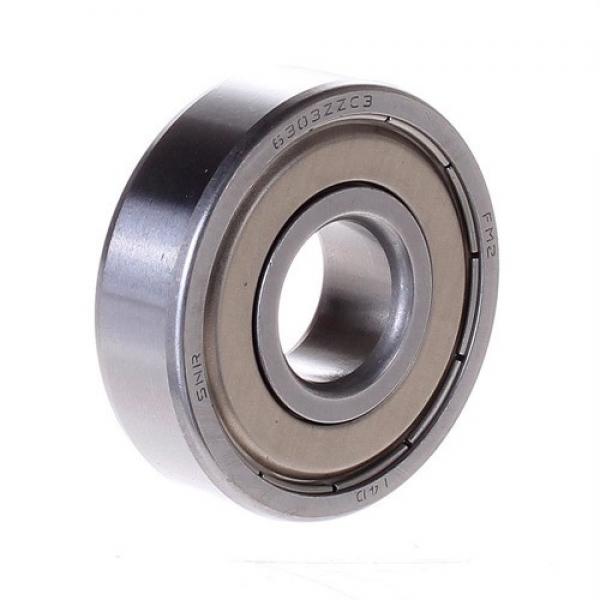

SNR Bearing 6303.ZZ.J30 image

SNR Bearing 6303.ZZ.J30 Systems

d1:44.6 mm
D2:61.88 mm
r1,2 - min.:1.1 mm
da - min.:37 mm
da - max.:44.5 mm
Da - max.:65 mm
ra - max.:1 mm
Basic dynamic load rating - C:29.6 kN
Basic static load rating - C0:16 kN
Fatigue load limit - Pu:0.67 kN
Reference speed:20000 r/min
Limiting speed:13000 r/min
Calculation factor - kr:0.03
Calculation factor - f0:13.1
Category:Single Row Ball Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:0.357
Product Group:B00308
Enclosure:1 Metal Shield
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Rolling Element:Ball Bearing
Snap Ring:No
Internal Special Features:No
Cage Material:Steel
Internal Clearance:C0-Medium
Inch - Metric:Metric
Long Description:30MM Bore; 72MM Outside Diameter; 19MM Outer Race Diameter; 1 Metal Shield; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features
UNSPSC:31171504
Harmonized Tariff Code:8482.10.50.68
Noun:Bearing
Keyword String:Ball
Manufacturer Item Number:6306-Z
Weight / LBS:0.8
Outside Diameter:2.835 Inch | 72 Millimeter
Bore:1.181 Inch | 30 Millimeter
Outer Race Width:0.748 Inch | 19 Millimeter
d1 ≈:44.6 mm
D2 ≈:61.88 mm
r1,2 min.:1.1 mm
da min.:37 mm
da max.:44.5 mm
Da max.:65 mm
ra max.:1 mm
Basic dynamic load rating C:29.6 kN
Basic static load rating C0:16 kN
Fatigue load limit Pu:0.67 kN
Calculation factor kr:0.03
Calculation factor f0:13.1
Mass bearing:0.35 kg
