Wheel Bearing TIMKEN 517003 fits 91-97 Toyota Previa

✖

Home>Products>timken bearing>Wheel Bearing TIMKEN 517003 fits 91-97 Toyota Previa image

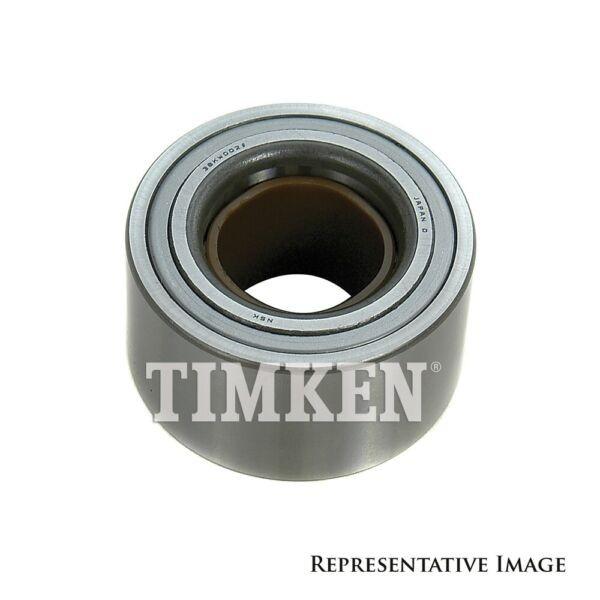

Wheel Bearing TIMKEN 517003 fits 91-97 Toyota Previa image

Wheel Bearing TIMKEN 517003 fits 91-97 Toyota Previa Sponsored Products Related To This Item

Mounting Method:Eccentric Collar
Rolling Element:Ball Bearing
Relubricatable:No
Seal Type:Double Land Riding Rubber Contact
Snap Ring:No
Inch - Metric:Inch
Long Description:3/4" Bore; Narrow Inner Ring; 0.591" Outer Race Width; Cylindrical Outer Race Profile; 1.85" Outside Diameter; Eccentric Collar; Ball Bearing; 1-7/32" Length Thru Bore; No Relubric
Other Features:Single Row | Standard Duty
d:0.75 Inch | 19.05 Millimeter
D:1.85 Inch | 46.99 Millimeter
Outer Race Width:0.591 Inch | 15.011 Millimeter
Shaft Size d:3/4 in
Bore Type:Cylindrical bore
Bearing Type:Ball Bearing
Material:Bearing Steel
Lubrication Type:Non-Relubricatable
O.D. Type:Cylindrical OD
Dimension B2:0.531 in
Series:Standard
Sub Series:RA..RR
Outside Diameter D:1.850 in
Inner Ring Width B:21.44 mm
Outside Ring Width C:15.000 mm
Radius r:0.6 mm
Center of Bearing from End S:7.49 mm
Dimension S1:23.51 mm
Set Screw Size:1/4-20
Number of Set Screws:2
Angle between Set Screws:90 º
Dimension B1:1.220 in
Static Load Rating:1460 lbf
Dynamic Load Rating:3190 lbf
