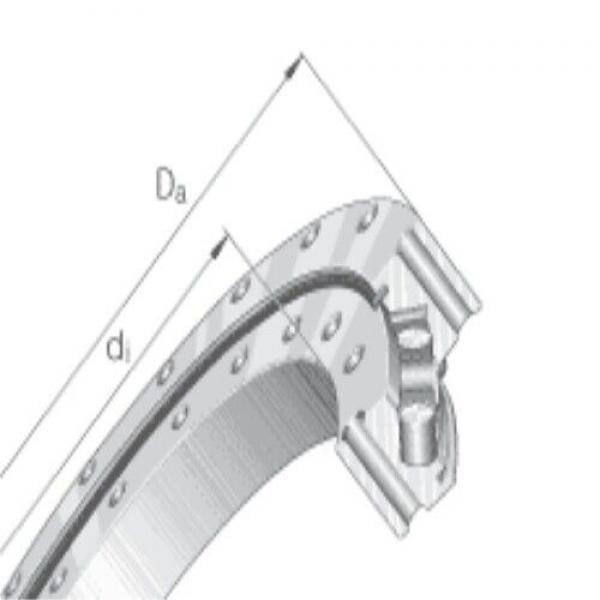

XSU140544 INA Palletizer Slewing ring image

Back to product page

XSU140544 INA Palletizer Slewing ring Product identifiers

C:23 mm
r min.:1,5 mm
da min.:38 mm
Da max.:82 mm
ra max.:1,5 mm
Weight:0,735 Kg
Basic dynamic load rating (C):43,5 kN
Basic static load rating (C0):23,9 kN
(Grease) Lubrication Speed:8 800 r/min
(Oil) Lubrication Speed:10 000 r/min
rs min:1.5 mm
Radial clearance class:CN
Mass:0.74 kg
Dynamic load, C:43.5 kN
Static load, C0:23.9 kN
Fatigue limit load, Cu:1.09 kN
f0:12.3
Nlim (oil):10,000 rpm
Nlim (grease):8,800 rpm
Min operating temperature, Tmin:-20 °C
Max operating temperature, Tmax:120 °C
Characteristic cage frequency, FTF:0.36 Hz
Characteristic rolling element frequency, BSF:3.42 Hz
Characteristic outer ring frequency, BPF0:2.55 Hz
Characteristic inner ring frequency, BPFI:4.45 Hz
da min:38 mm
Da max:82 mm
ra max:1.5 mm
Category:Single Row Ball Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:0.732
Product Group:B00308
Enclosure:Open
Precision Class:ABEC 1 | ISO P0
Maximum Capacity / Filling Slot:No
Rolling Element:Ball Bearing
Snap Ring:No
Internal Special Features:No
Cage Material:Steel
Internal Clearance:C0-Medium
Inch - Metric:Metric
Long Description:30MM Bore; 90MM Outside Diameter; 23MM Outer Race Diameter; Open; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features
UNSPSC:31171504
Harmonized Tariff Code:8482.10.50.68
Noun:Bearing
Keyword String:Ball
Manufacturer Item Number:6406
Weight / LBS:1.616
Bore:1.181 Inch | 30 Millimeter
Outer Race Width:0.906 Inch | 23 Millimeter
Outside Diameter:3.543 Inch | 90 Millimeter
bore diameter::30 mm
finish/coating::Uncoated
outside diameter::90 mm
bearing material::High Carbon Chrome Steel
overall width::23 mm
cage material::Steel
bore type::Round
inner ring width::23 mm
closure type::Open
outer ring width::23 mm
row type & fill slot::Single Row Non-Fill Slot
maximum rpm (grease)::8800 rpm
snap ring included::Without Snap Ring
maximum rpm (oil)::10000 rpm
internal clearance::CN
fillet radius::1.5 mm
operating temperature range::-40 to 120 ºC
maximum rpm::10000 RPM
dynamic load capacity::43500 N
series::64
static load capacity::23900 N
manufacturer product page::Click here
precision rating::Class 0
